Support H.265 encoding, ultra-low bitrates, compatible with H.264 surroundings;
Support VGA, HDMI full HD output simultaneously;
Support ONVIF; access third party;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support web, VMS, center platform management software MYEYE, provide SDK development;
Support various mobile monitoring (iPhone, Android);
Remote Access, With DNS (ARSP),easy to monitor remotely
Support UTC, control signal& video stream transmit through one single coaxial
Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Support intelligent analysis: Human detection, face detection, Vehicle shape detection coaxial audio,VIOT;;

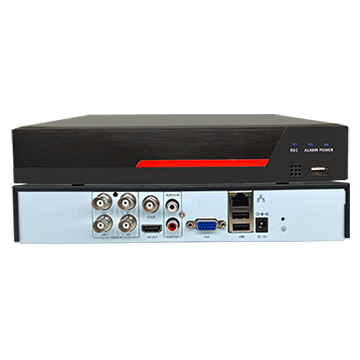

| Model | HX-XMD3004L5MN |
System | Main processor | NT98331 |
Interface | Preview | 1/4/8/9 |
Video | Codec | H.265 |
Monitor quality | VGA(1080P at most);HDMI(1080P at most) |
Preview ability | 4*5M-N@20fps（6 in 1）/4*4M-N@30fps（6 in 1）/4*1080P（6 in 1）default:5M-N |
Encode ability | 4*5M-N@20fps（6 in 1）/4*4M-N@28fps（6 in 1）/4*1080P@25fps（6 in 1）default:5M-N |
Decode ability | 2*5M-N@20fps（6 in 1）/2*4M-N@28fps（6 in 1）/2*1080P@25fps（6 in 1）default:5M-N |
Multi-mode input | Analog：4*5M-N hybrid：4*5M-N（analog）+2*1080P（network） network：16*1080P;8*5M |
Digital to analog conversion | Unsupport |
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
Audio | Audio compression | G.711A |
Intercom | support |
Record & playback | Record mode | manual>alarm>motion detection>timing |
Local Playback | 2ch(analog input mode) |
Search mode | Search by time, calendar, event, channel |
Storage & backup | Video storage | HDD, network |
Backup mode | Network, USB hard disk, USB burner, SATA burner |
External Interface | Video input | 4ch BNC |
Video output | 1ch VGA, 1ch HDMI |
Loop Vout | N/A |
Audio I/O | 1/1 |
Alarm I/O | 0/0 |
Network interface | RJ45 10M/100M self-adaption |
PTZ control | Support kinds of PTZ protocols |
USB | 2* USB 2.0 ports |
HDD | 1*SATA ports (Max 14TB/per) |
Wireless | 3G, WIFI (extend via USB) |
General | Power supply | 12V/2A |
Power Consumption | <15W (without HDD) |
Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
Dimension | 265mm*225mm*44mm |
Weight | 625g |
