Feature：
Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings;
Support HDMI full HD output simultaneously;
Support ONVIF; access third party;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support web, VMS, center platform management software MYEYE, provide SDK development;
Support various mobile monitoring (iPhone, Android);
Remote Access, With DNS (ARSP),easy to monitor remotely
Support UTC, control signal& video stream transmit through one single coaxial
Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Support intelligent analysis: Human detection, face detection, Vehicle shape detection,coaxial audio,VIOT;
Specification：

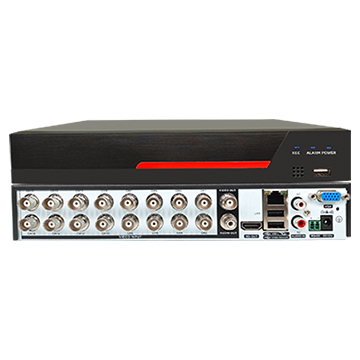

| Model | HX-XMD3016L5MN |
System | Main processor | NT98332 |
Interface | Preview | 1/4/8/9/16 |
Video | Codec | H.265+ |
Monitor quality | VGA (1080P at most)；HDMI (4K at most) |
Preview ability | 16*5M-N@12fps (6 in 1)/16*4M-N@15fps (6 in 1) ( XVI), default 5M-N |
Encode ability | 16*5M-N@6fps (6 in 1)/16*4M-N@8fps (6 in 1) (XVI) , default 5M-N |
Decode ability | 16*5M-N@6fps (6 in 1)/16*4M-N@8fps (6 in 1) (XVI) , default 5M-N |
Multi-mode input | Analog：16*5M-N hybrid：16*5M-N（analog）+4*1080P（network） network：16*1080P；8*5M |
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
Audio | Audio compression | G.711A |
Intercom | support |
Record & playback | Record mode | manual>alarm>motion detection>timing |
Local Playback | 16ch(analog input mode) |
Search mode | Search by time, calendar, event, channel |
Storage & backup | Video storage | HDD, network |
Backup mode | Network, USB hard disk, USB burner, SATA burner |
External Interface | Video input | 16ch BNC |
Video output | 1ch HDMI（Support extended VGA*1） |
Loop Vout | N/A |
Audio I/O | 2（Can be extended to 6ch）/1 |
Alarm I/O | 0（Can be extended to 4ch）/0（Can be extended to 1ch） |
Network interface | RJ45 10M/100M self-adaption |
PTZ control | 1*RS485, Support kinds of PTZ protocols |
USB | 2* USB 2.0 ports |
HDD | 2*SATA ports (Max 8TB/per) |
Wireless | 3G, WIFI (extend via USB) |
General | Power supply | 12V/3A |
Power Consumption | <15W (without HDD) |
Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
Dimension | 256mm*225mm*44mm |
Weight | 748g |
