Product Description
IPC-B205-4M
Share to：

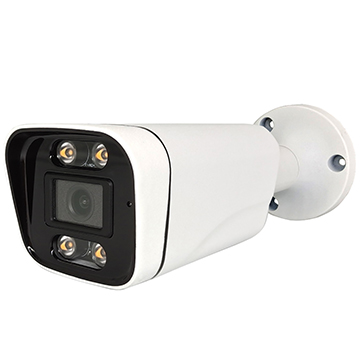

IPC-B205-4M

Consult immediately
Detail
Spec 60# bullet camera Material metal
Color White Brand HXWSION
Model IPC-B204-4M

Features:

Supporting human detection, face detection, and support to customize other intelligent functions

4.0MPHD Low illumination resolution,clear and fine images;

Support 2D/3D noise reduction,digital wide dynamic;

Advanced H.265+ (Compatible with H.265/H.264)   video compression,Super low rate,high definition quality of image;

Professional anti-lightning,conform to GB/T17626.5 and   IEC61000-4-5。

Support ONVIF;access third party;

Support various mobile monitoring(iPhone,Android);

Provide web、CMS、center platform management software MYEYE,provide SDK development

Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed.



Model
IPC-B205-4M
System structure
Embedded RTOS,dual-core 32bit DSP(GK7205V210),pure hard compression ,watch dog
Sensor
4.0M 1/2.8"SC5239S Low illumination CMOS sensor,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2
Video compression
H.265 +(Compatible with H.265/H.264)   support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image output
Main stream:2560*1440@18fps, 2304*1296@20fps,1920*1080@25fps; sub-stream: 800*448@25fps
Shutter
1/50(1/60)s to 1/10,000s
Lens
2.8/3.6mm
Day and night
Support IR-CUT,IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reduction
Support 2D/3D
Wide dynamic
Support digital Wide dynamic
Auto iris
N/A
Audio compression
G.711,support bidrectional talk,audio&video synchronization
Audio interface
1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;
1ch output,impedance:16Ω,30mw,support microphone
Network interface
1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc
Extension interface
Support external audio power amplifier, white light signal control, UART to expand other functions
Singal interface
One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZ
N/A
Motor interface
N/A
Alarm I/O
N/A
WIFI interface
N/A
Reset interface
N/A
SD Card
N/A
Reliability
Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysis
Supporting human detection, face detection, and support to customize other intelligent functions
Other function
Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK;
ONVIF
Support
Mobile monitoring
Support multiple mobile monitoring（iOS，Android）
Power
DC12V/2A input, power consumption:≤5W,
Dimension
184mm*108mm
Other
Support POE power supply, not support any custom,The drive voltage of the light board is at 3.3V
